Controller Integration

While OCHRE can simulate a stand-alone dwelling or piece of equipment, it is designed to integrate with external controllers and other modeling tools. External controllers can adjust the power consumption of any OCHRE equipment using multiple control methods. OCHRE can also send status variables to controllers to enable more advanced control strategies. The following table provides an overview of the control signals and status various that OCHRE can send and receive.

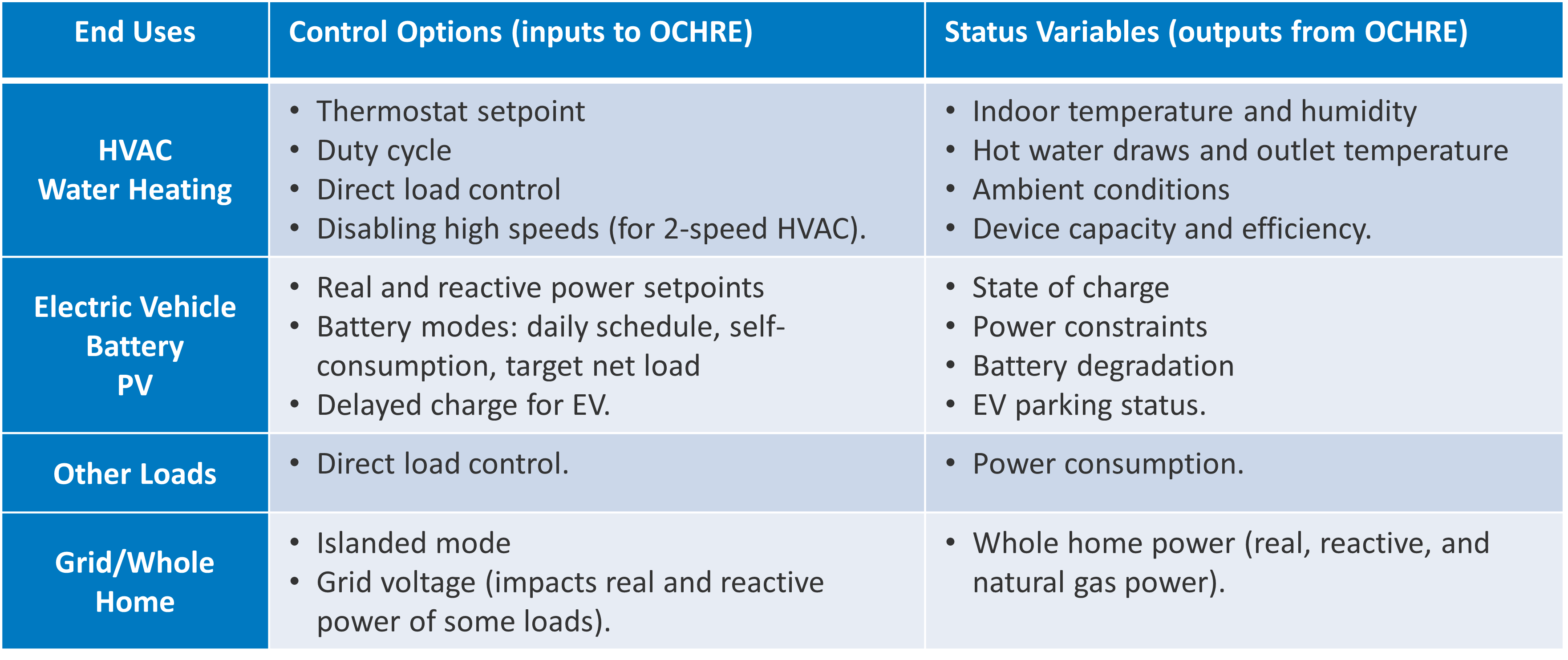

Overview of OCHRE control options and status variables

For example, the code below will create a battery model and discharge it at 5 kW for one time step.

battery = Battery(
    capacity_kwh=10,  # energy capacity = 10 kWh
    capacity=5,       # power capacity = 5 kW
    soc_init=0.5,     # Initial SOC = 50%
    start_time=dt.datetime(2018, 1, 1, 0, 0),
    time_res=dt.timedelta(minutes=15),
    duration=dt.timedelta(days=1),
)

control_signal = {'P Setpoint': -5}      # Discharge at 5 kW
status = battery.update(control_signal)  # Run for 1 time step

See the OCHRE User Tutorial Jupyter notebook or run_external_control.py for example code for multiple end uses.

Equipment Control Signals

The following tables list the control signals that OCHRE equipment can receive, by end use. They include the unit of each control signal, and whether the control signal resets at the end of the time step.

HVAC Heating or HVAC Cooling

Control Command	Units	Resets?	Description
Load Fraction	unitless	True	1 (no effect) or 0 (forces equipment off)
Setpoint	C	True	Sets temperature setpoint
Deadband	C	Only if in schedule	Sets temperature deadband
Capacity	W	True	Sets HVAC capacity directly, ideal capacity mode only
Max Capacity Fraction	unitless	Only if in schedule	Limits HVAC max capacity, ideal capacity mode only
Disable Speed X	N/A	False	Flag to disable low (X=1) or high (X=2) speed, only for 2 speed equipment
ER Capacity	W	True	Sets ER element capacity directly, ideal capacity mode only, ASHP Heater only
Max ER Capacity Fraction	unitless	Only if in schedule	Limits ER element max capacity, ideal capacity mode only, ASHP Heater only

Water Heating

Control Command	Units	Resets?	Description
Load Fraction	unitless	True	1 (no effect) or 0 (forces equipment off)
Setpoint	C	Only if in schedule	Sets temperature setpoint [1]
Deadband	C	Only if in schedule	Sets temperature deadband [2]
Max Power	kW	Only if in schedule	Sets the maximum power. Does not work for HPWH in HP mode

[1]

A 10 F (5.56 C) decrease in setpoint corresponds to a CTA-2045 ‘Load Shed’ command. A 10 F increase corresponds to an ‘Advanced Load Add’ command (only available in B version of standard).

[2]

Decreasing the deadband to about 2 C corresponds to a CTA-2045 ‘Load Add’ command. A typical deadband for gas and electric water heaters is 10 F (5.56 C).

Electric Vehicle (EV)

Control Command	Units	Resets?	Description
Load Fraction	unitless	N/A	1 (no effect) or 0 (forces equipment off)
Delay	N/A	True	Delays EV charge for a given time [3]
P Setpoint	kW	Only if EV Max Power (kW) in schedule	Sets the AC power setpoint
SOC Rate	1/hour	Only if EV Max Power (kW) in schedule	Sets the AC power setpoint based on SOC rate, EV capacity, and efficiency of charging
Max Power	kW	Only if EV Max Power (kW) in schedule	Equivalent to “P Setpoint”
Max SOC	unitless	Only if EV Max SOC (-) in schedule	Maximum SOC limit

[3]

Value can be a datetime.timedelta or an integer to specify the number of time steps to delay

Solar PV

Control Command	Units	Resets?	Description
P Setpoint	kW	True	Sets real AC power setpoint
P Curtailment (kW)	kW	True	Sets real power setpoint by specifying absolute curtailment
P Curtailment (%)	%	True	Sets real power setpoint by specifying curtailment relative to maximum power point
Q Setpoint	kVAR	True	Sets reactive power setpoint
Power Factor	unitless	True	Sets reactive power setpoint based on power factor
Priority	N/A	False	Changes internal controller priority setting [4]

[4]

Options include ‘Watt’ for Watt-priority, ‘Var’ for VAR-priority, or ‘CPF’ for constant power factor mode

Battery

Control Command	Units	Resets?	Description
P Setpoint	kW	True	Sets AC power setpoint
SOC	unitless	True	Sets AC power to achieve desired SOC setpoint
Self Consumption Mode	N/A	False	Flag to turn on Self-Consumption Mode [5]
Min SOC	unitless	Only if in schedule	Minimum SOC limit, self-consumption control only
Max SOC	unitless	Only if in schedule	Maximum SOC limit, self-consumption control only
Max Import Limit	kW	Only if in schedule	Max dwelling import power for self-consumption control [6]
Max Export Limit	kW	Only if in schedule	Max dwelling export power for self-consumption control [7]

[5]

Self-Consumption Mode aims to minimize grid imports and exports. This strategy will charge the battery when net energy generation is larger than the Max Export Limit and discharge when net energy consumption is larger than the Max Import Limit.

[6]

Can be negative to force the battery to discharge to the grid

[7]

Can be negative to force the battery to charge from the grid (or from gross solar generation)

Gas Generator

Control Command	Units	Resets?	Description
P Setpoint	kW	True	Sets AC power setpoint
Self Consumption Mode	N/A	False	Flag to turn on Self-Consumption Mode [8]
Max Import Limit	kW	Only if in schedule	Max dwelling import power for self-consumption control [9]

[8]

Self-Consumption Mode aims to minimize grid imports. This strategy will generate electricity when net energy consumption is larger than the Max Import Limit.

[9]

Can be negative to force excess generation to the grid

Lighting and Other Loads

Control Command	Units	Resets?	Description
Load Fraction	unitless	True	Multiplier to adjusts the scheduled power consumption. Applied to electric and gas power
P Setpoint	kW	Only for ScheduledLoad and EventDataLoad	Sets electric power setpoint
Gas Setpoint	therms/hour	Only for ScheduledLoad and EventDataLoad	Sets gas power setpoint
Delay	N/A	N/A	Delays next event for a given time. Only for EventBasedLoad [10]

[10]

Value can be a datetime.timedelta or an integer to specify the number of time steps to delay

External Model Signals

OCHRE can also integrate with external models that modify default schedule values and other settings.

The most common use case is to integrate with a grid simulator that modifies the dwelling voltage. OCHRE includes a voltage-dependent impedance-current-power (ZIP) model for all equipment that modifies the real and reactive electric power based on the grid voltage.

The following code sends a voltage of 0.97 p.u. to a Dwelling model:

status = dwelling.update(schedule_inputs={'Voltage (-)': 0.97})

External model signals can also modify any time series schedule values including weather and occupancy variables. The names and units of these variables can be found in the header of the OCHRE schedule file. Alternatively, these variables can be set at the beginning of the simulation; see the OCHRE User Tutorial Jupyter notebook for more details.

Status Variables

The update function for equipment and dwellings returns a Python dictionary with status variables that can be sent to the external controller. These status variables are equivalent to the time series results described in Outputs and Analysis. Note that the verbosity applies to the status variables in the same way as the outputs.

See run_hvac_dynamic_control in run_external_control.py for an example.

Co-simulation

OCHRE is designed to run in co-simulation with controllers, aggregators, grid models, and other simulation agents. OCHRE models can communicate with other agents via their external control signals, external model signals, and status variables.

See run_cosimulation.py for a very basic co-simulation implementation using the HELICS platform. The example shows a simple aggregator that controls batteries in two different OCHRE dwellings.

OCHRE can also repeat a single timestep with multiple control options, enabling co-optimization or simulation across varying time-scales. See the run_pv_voltvar function in run_external_control.py as an example.

See the Citation and Publications for examples of more advanced co-simulation architectures that use OCHRE.
